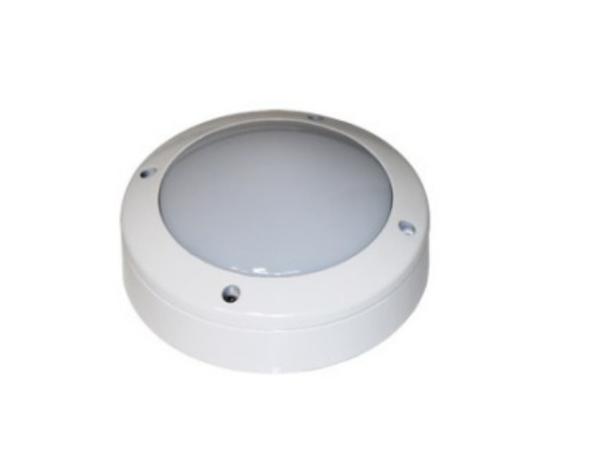

800 Lumen Outdoor LED Wall Light White Black Cover 85-265vac
Quick details :10W led bulkhead outdoor wall light is main production which can be used both
indoor and outdoor .with 145mm dimmater , can be white and black .grey housing . IP65 ,IK10
designing . high luminous flux 800lm.
Product review
1. Professional l design suitable for Outdoor led Lighting decoration
2. saving energy, enviromental firendly , watts and size are various
3. Lighting colour and finishing colour are various
Product advantages
1. suitable for indoor applications with IP65 rating
2. IK 10 ,impact-resistance
3. high brightness of light resource
4. avliable for different finishing housing
5. fast delivery , 2 weeks after order confirmation
1,Electricity Parameters:
| NO | Items | Parameters |
| 1 | Input Voltage | 90-265VAC 47-63HZ |
| 2 | Input Current | 0.058A(230V) |
| 3 | Power | 10W |
| 4 | Output Voltage | 30V |
| 5 | Output Current | 0.34A |
| 6 | Power Factor | >0.9 |
| 7 | Luminous Efficiency | ≥85% |
4.
2 2.Optical Parameters:
| NO | Items | Parameters |
| 1 | Beam angel (H,V) | 115° |
| 2 | Peak Light Intensity | 247cd |
| 3 | Luminous Flux | 800Lm |
| 4 | Color Rendering Index | ≥70Ra |
| 5 | Color Temperature | 2800-3200k /4000-4500k/5500-6000k |
4.
3. Physical Parameters:
| NO | Items | Parameters |
| 1 | Working temperature | -40°— 60° |
| 2 | IP range | IP65 |
| 3 | N.W | 330g |

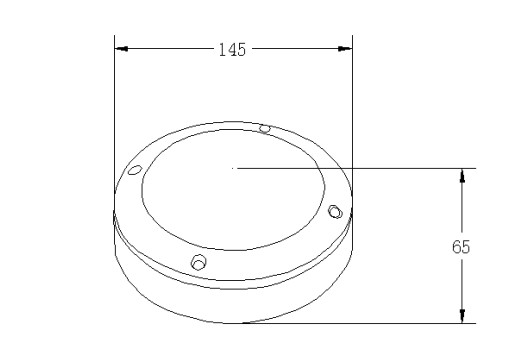

| 4 | Length | 145mm |
| 5 | Width | 145mm |
| 6 | Height | 65mm |
7. A

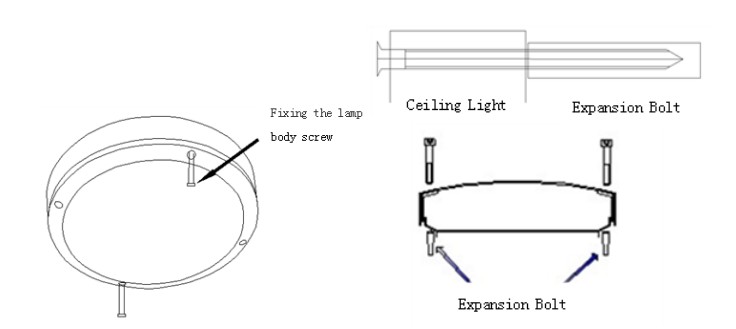

1,Take 2pcs 5*80mm screw to fix the lamp to the wall, take 2pcs 4*12mm screw to fix the lamp
base and lamp cover.
2,Installation methods : with the tapping screws installed two holes of base to specified location(
two holes are on the diagonal of base )
.
3,when fix the lamp body, drill a hole with 6mm-7mm on the wall, hammer into the expansion bolt.
Screw through the screw hole of lamp body , screw in the expansion bolt . installation over . see
the picture :
Our services
1. we sell both the whoe fixture as well as the componets such like the housings only .
2. we have professional well trained team both for selling and engineering
3. OEM & ODM production available.
4. 3 years warranty.
5. before / after sales service both will be provied

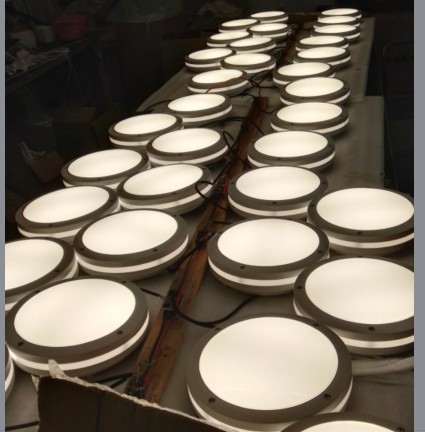

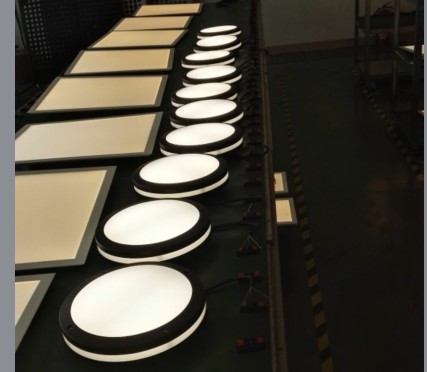

Aging Test :
